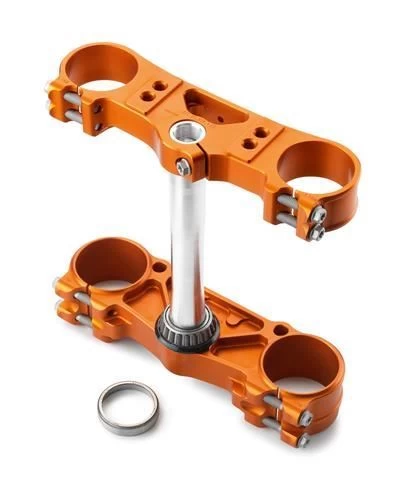

KTM TRIPLE CLAMP 22mm OFFSET (7810199902204)

All KTM CNC-machined triple clamps have the following properties:

• Manufactured from highest grade aluminum
• Optimally tuned steering stem stiffness
• 100% alignment of the fork tubes
• Perfect flexibility – adapted precisely to the KTM WP fork

The factory triple clamp has the additional benefits of:

• Fork clamp spindled after anodising:
  With the same tightening torque, this operation increases the friction between triple clamp and fork tubes, thus practically preventing the fork tubes from twisting in the triple clamp.
• The special steering stem bracket provides additional support for this feature.
• Ultra-easy offset adjustment: Dismantling of front wheel and fork is not necessary!

The triple clamp offset is the distance between the horizontal center line of both fork tubes and the center of the steering axis, by which the fork tubes are offset from the steering axis. The selected offset can be seen at a glance thanks to the marking on the triple clamp.
Offset setting options:

• Shorter offset: stability on fast straights
• Longer offset: simpler and swifter steering into corners

All KTM triple clamps are supplied with steering stem and with the steering head bearing already pressed on.
